At Radii-x, we're transforming the way concrete inspection is conducted by introducing advanced digital x-ray technology designed to improve every aspect of the process.
Partner with us for a seamless transition to digital concrete x-raying and embrace a new era of advanced concrete inspection.
Fast Image Capture
Rapid image acquisition, reducing inspection time and allowing for quicker decision-making, ultimately boosting efficiency and productivity.
Enhanced Image Quality
Inspections of concrete structures with unmatched visual clarity and resolution, ensuring the highest level of care and precision.
Improved Workflow
Software with enhanced functionality, user experience, and customer support.
Software

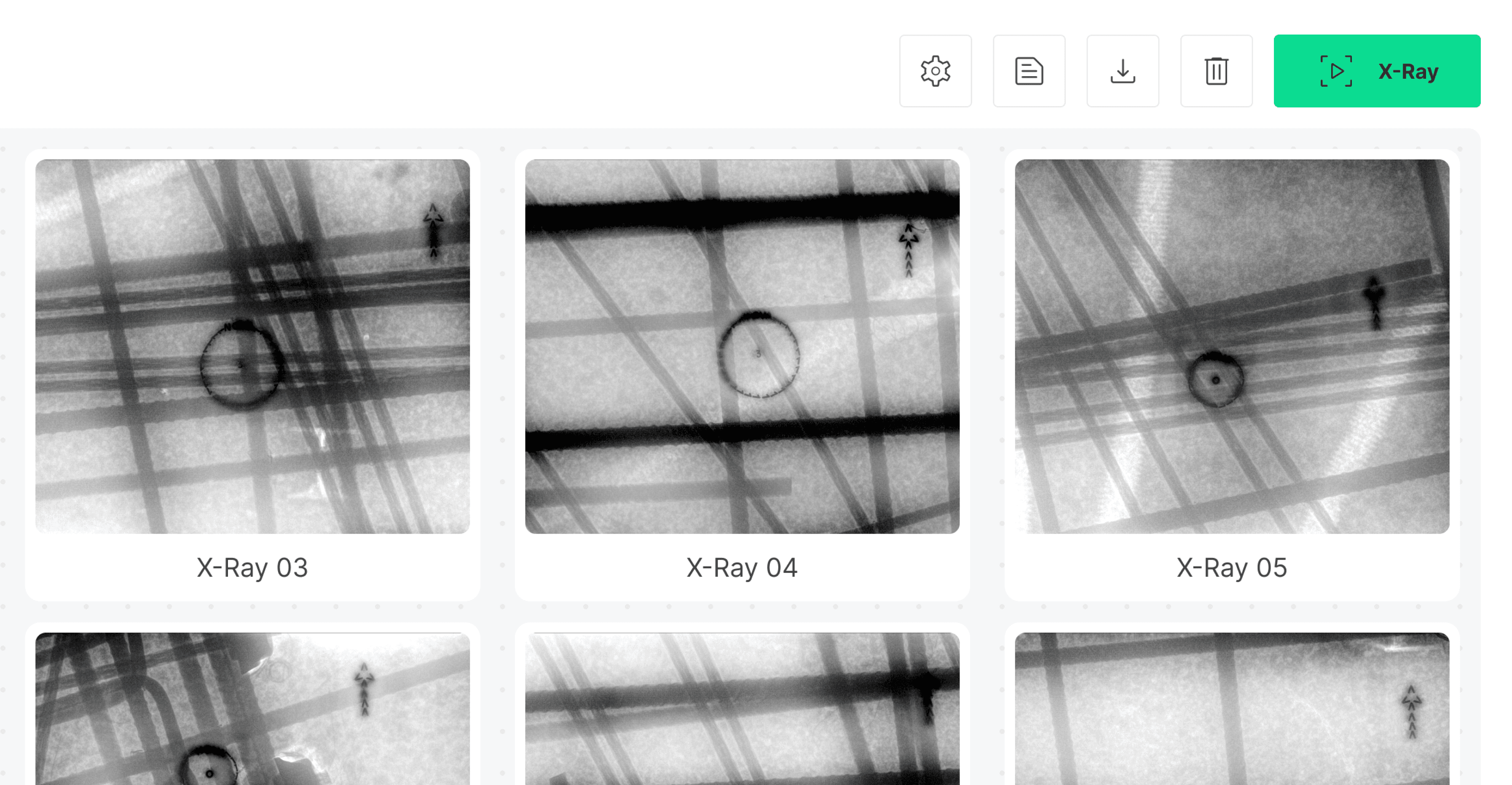

Radii-x Digital X-Ray Software
Enhances every aspect of the concrete inspection process. With advanced image processing capabilities, it delivers crystal-clear results, allowing for precise identification of structural components like rebar, conduit and post-tension cables.
Enhanced Image ProcessingAdvanced algorithms deliver high-detail images for more accurate inspections.
Intuitive InterfaceEasy-to-use controls allow operators to perform inspections efficiently.
Automated WorkflowsAutomated processes reduce manual tasks, ensuring faster and consistent inspections.
Panel

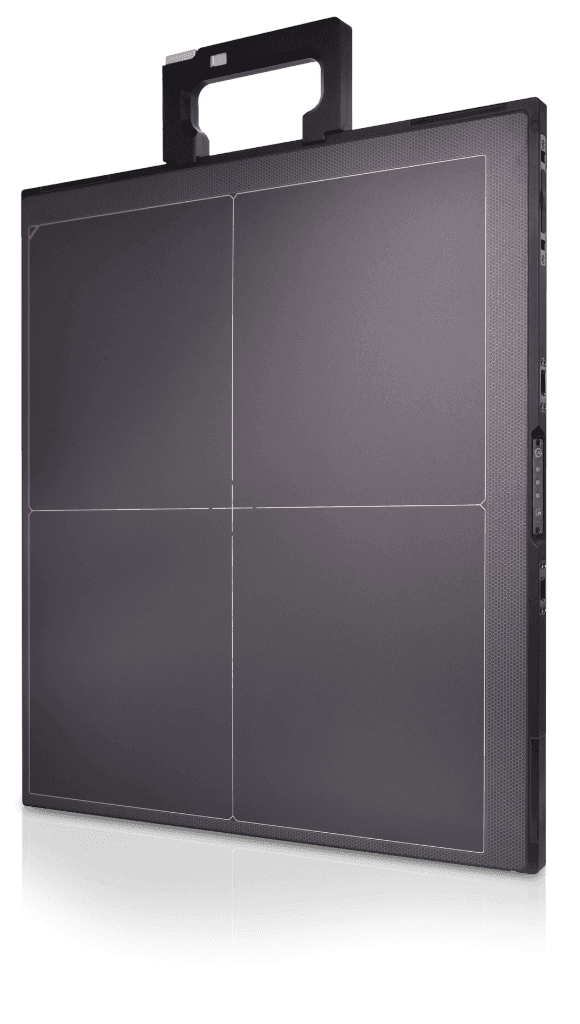

A Durable and Rugged Digital X-Ray Panel
Radii-x offers a glass-free digital x-ray panel engineered for the toughest, dirtiest, and dustiest construction sites. Delivering exceptional image clarity quickly, the panel provides clear, actionable data, allowing you to make informed decisions faster.
Thin Outer Rim for Tight X-RaysDesigned with an 2.8 mm rim on all sides, enabling precise x-rays in confined spaces.
Hot-Swappable Dual BatteryEquipped with dual batteries providing up to 12 hours of continuous operation without shutting down the detector.
Wide Wireless CoverageThree internal antennas provide extensive wireless coverage, allowing technicians to work efficiently and safely while adhering to ALARA principles.
Superior Image Quality and SensitivityGlass-free DR panels are highly sensitive requiring lower radiation doses, which reduces exposure time.
Source
Powerful X-Ray Source for Concrete Inspection

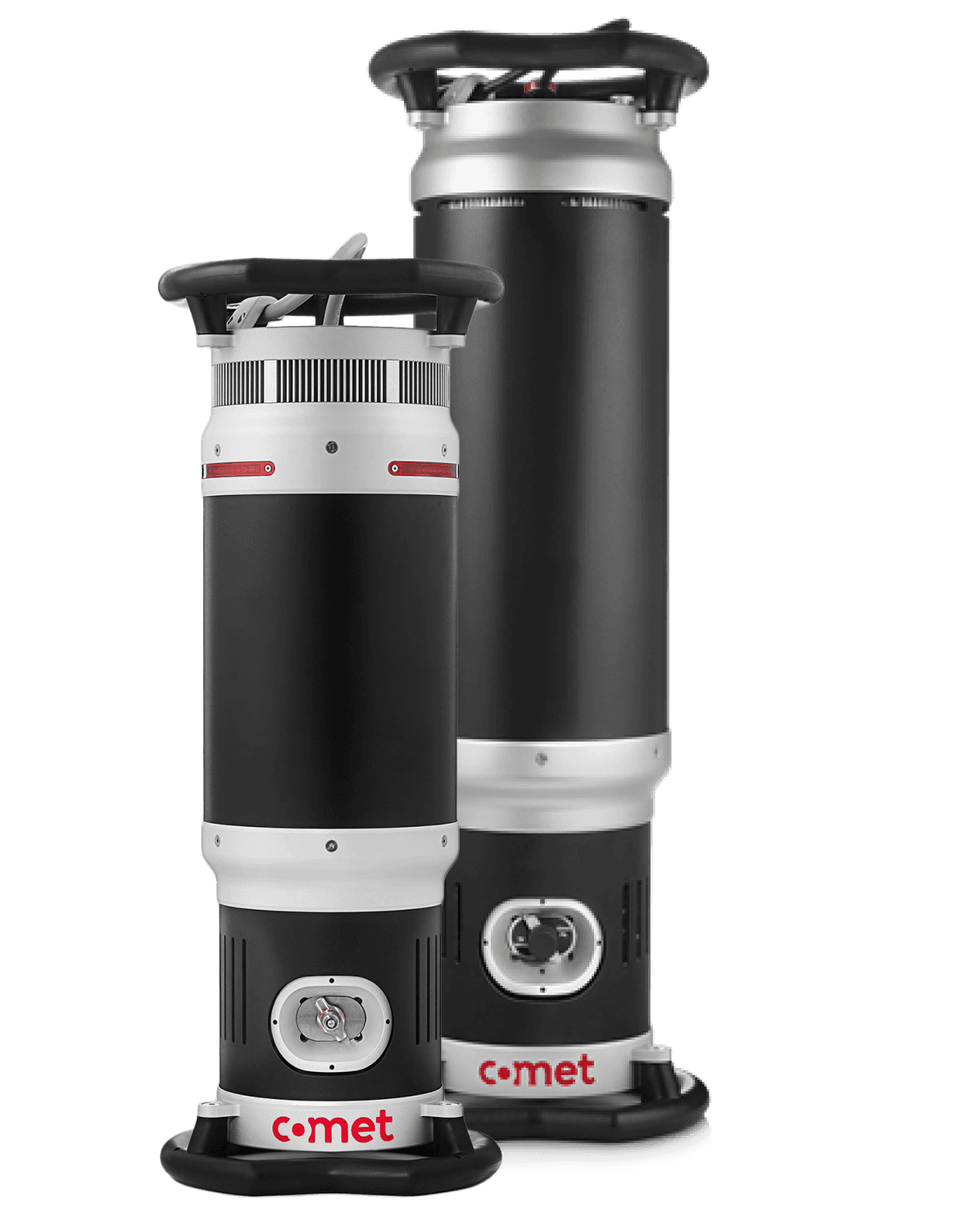

Radii-X offers the EVO 300D-900 x-ray source from Comet — a robust, mobile, and solution designed to penetrate concrete up to 14 inches thick. Built for durability, its ergonomic design ensures easy mobility and repositioning on-site, making it an ideal choice for efficient concrete inspection.
Superior Penetration PowerThe EVO x-ray source penetrates concrete up to 14 inches thick, making it highly effective for detecting rebar, conduit, and post-tension cables in even the densest structures.
Durable and MobileDesigned for harsh field conditions, this source features a rugged metal-ceramic tube and composite casing, for long-lasting reliability, while its mobile and ergonomic design allows for easy on-site repositioning.
Reliable PerformanceWith 300 kV and 900 W of constant potential power, the system delivers clear, high-resolution images, optimized for precise evaluation in concrete inspections.
How It Works
Concrete X‑Raying
Concrete X‑Raying
Workflow
Every Radii-x inspection follows the same four steps — transpoint, setup, align, capture. No development time, no reshoots.
01

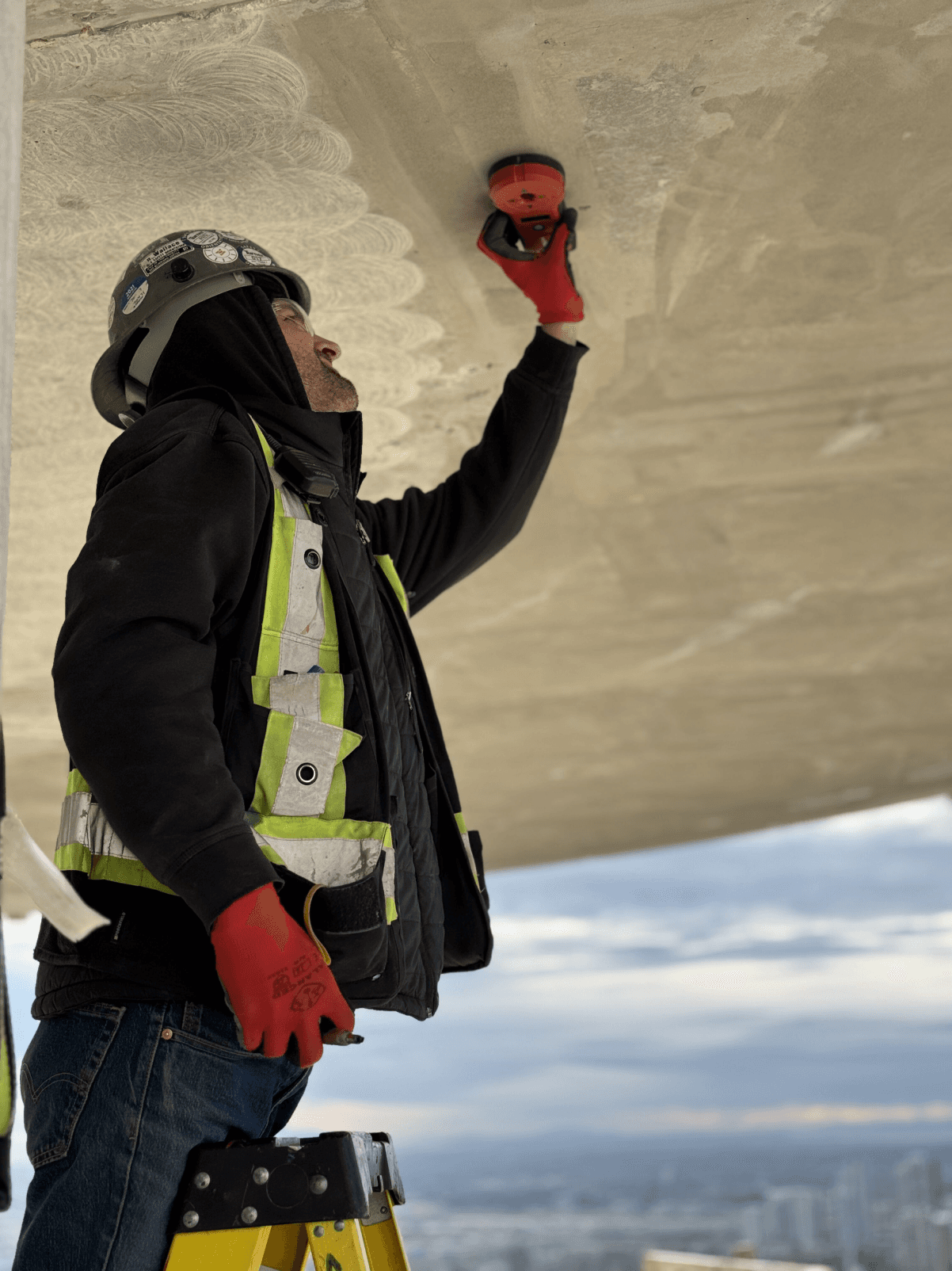

Transpoint
Determine the exact location on both sides of a concrete slab where x-ray will be preformed.
02

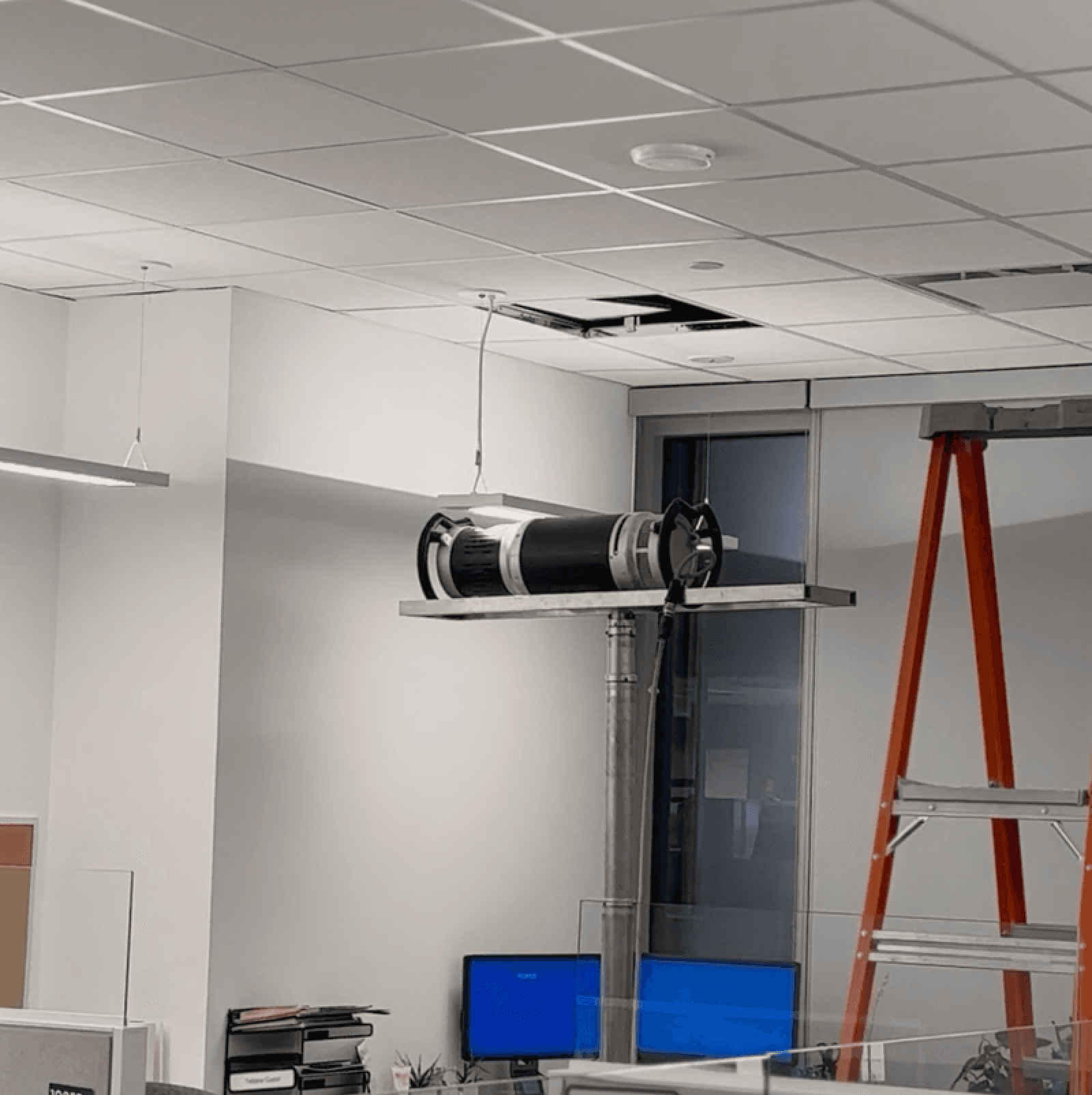

Setup X-Ray Source
Position the x-ray source at the transpointed location ensuring the correct angle and distance.
03

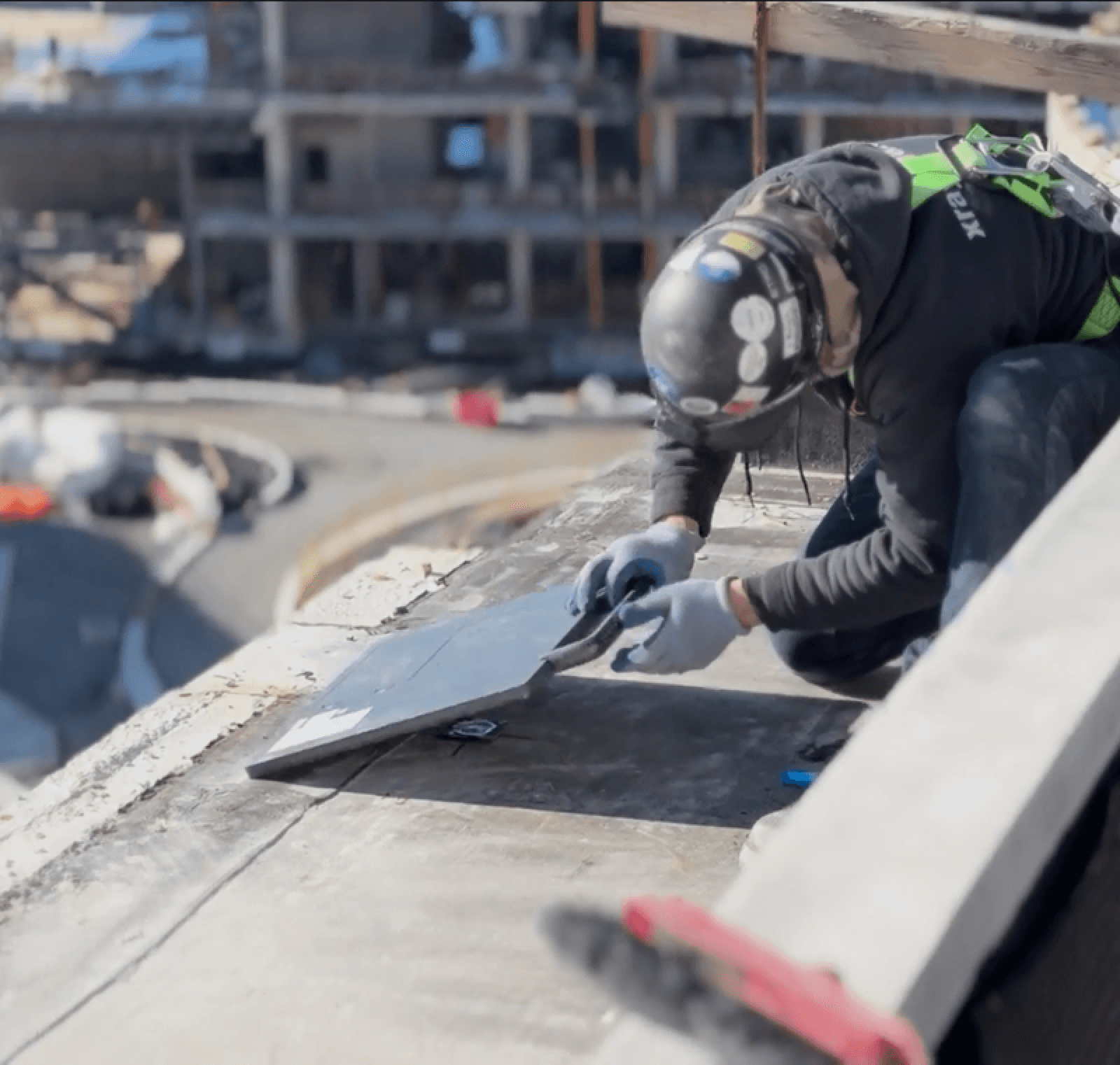

Setup Digital Panel
Align the digital panel directly opposite the x-ray source to ensure it captures the radiation passing through the concrete.
04

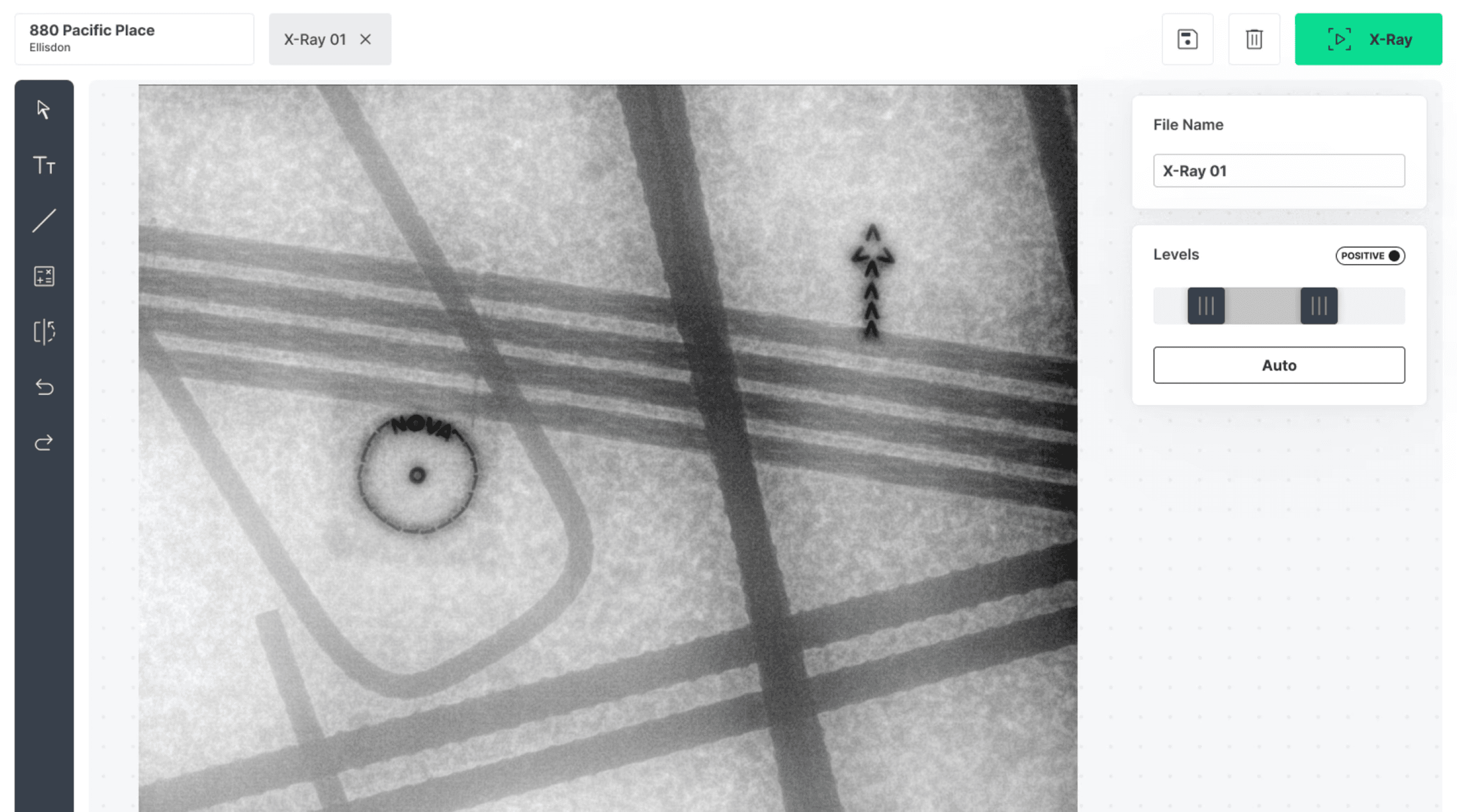

Image Acquisition
Activate the x-ray source to emit radiation through the concrete, with the digital panel recording the transmitted signals.
Cases
Transition to Digital
Transition to Digital
Concrete X‑Raying
GPR Companies
Digital x-ray technology addresses the inherent uncertainties of GPR by offering precise detection of subsurface elements such as rebar, conduits, and post-tension cables in concrete. With high-resolution, real-time imaging, it enhances decision-making and improves the efficiency of project planning and execution.
Request a DemoConcrete Cutting Companies
Expand your service offerings by introducing both digital x-ray and GPR technologies, providing a comprehensive inspection solution alongside your cutting services. By adopting these advanced technologies, you become a one-stop provider for clients needing precise assessments before any cutting or drilling work, significantly increasing your competitive edge.
Request a DemoDigital X-Ray Companies
Radii-x’s software provides continuous updates and support, ensuring you always have access to the latest advancements and features in digital x-ray technology. This investment in superior software enhances your reputation for quality and reliability, driving client loyalty and opening doors to higher-value projects.
Request a Demo
Comparison

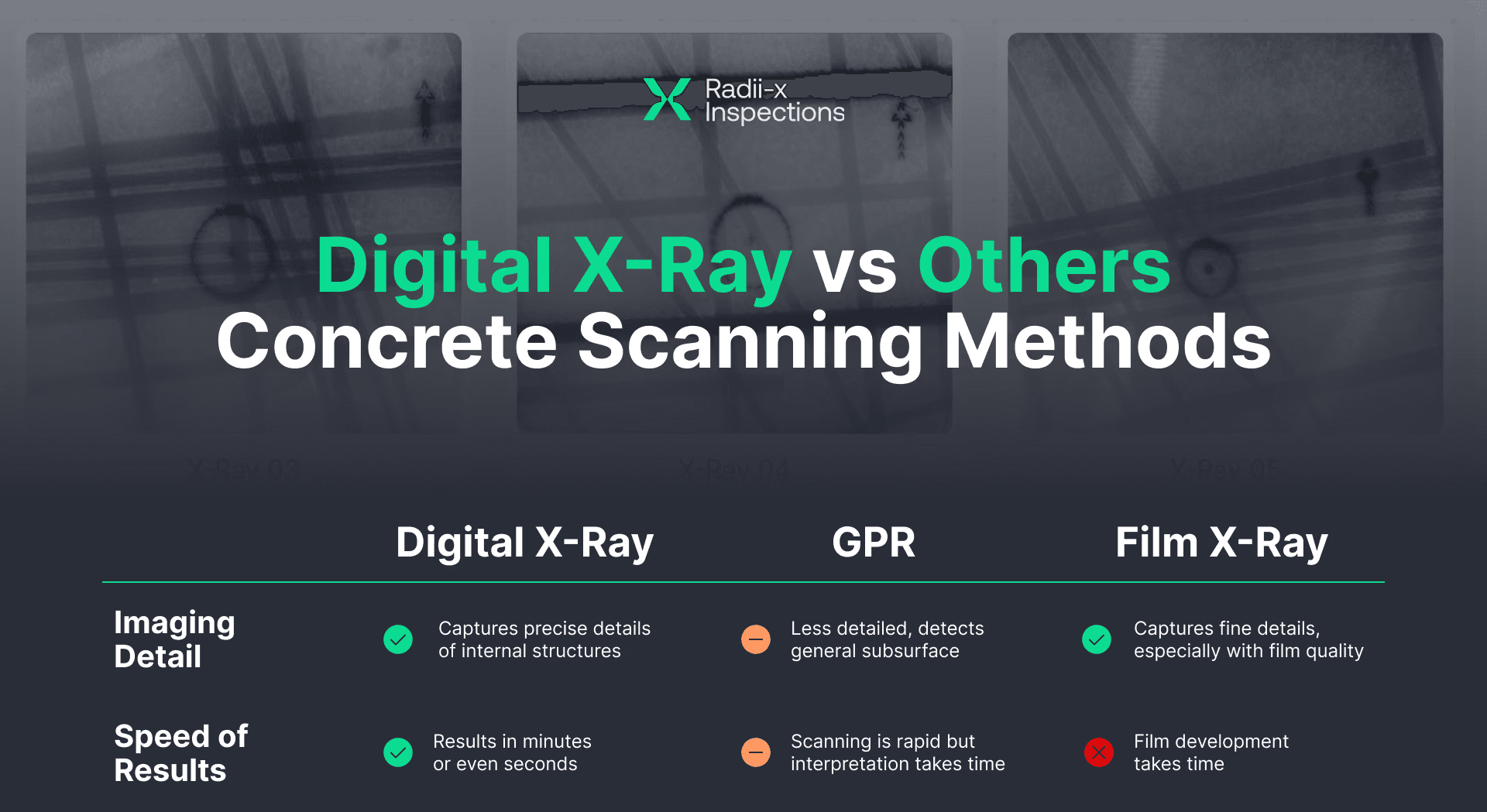

Radii-x vs GPR & Film
Digital x-ray delivers high-resolution images with lower radiation and faster results, GPR is useful for locating rebar and conduit, but lacks image detail, while traditional film is labor-intensive and requires more radiation. Digital x-ray is the best choice for detailed and efficient assessments.
| Radii-x | Ground Penetrating Radar | Film | |
|---|---|---|---|
| Imaging Detail | ✓Captures precise details of internal structures | ✕Less detailed, detects general subsurface | ✓Captures fine details, especially with film quality |
| Speed of Results | ✓Results in minutes or seconds | ✕Scanning is rapid but interpretation takes time | ✕Film development takes time |
| Penetration Depth | ✓Penetrates concrete up to 14" | ✕Limited depth in dense materials | ✓Penetrates dense materials like concrete |
| Real-Time Results | ✓Provides real-time results with digital panel | ✓Real-time visual representation | ✕Requires film processing before results |
| Post-Processing | ✓Digital post-processing, only laptop needed | ✕Less detailed post-processing | ✕Requires physical film development |
| Environmental Impact | ✓No environmental impact | ✓No environmental impact | ✕Generates hazardous radioactive waste |
| Portability | ✓Equipment is portable | ✓Highly portable and easy to transport | ✕Limited portability, radioactive and regulated |
| Training Required | ✓Requires technical training for system use, days | ✕Years required to become expert | ✕Requires extensive training and expertise |
| Cost Efficiency | !Initial costs higher, lower long-term costs | ✓Lower initial and operational costs | ✕High ongoing costs due to chemicals, safety & film |
| Radiation Exposure | !Requires safety precautions | ✓No radiation impact | ✕Highest risk, uses radioactive isotopes |
FAQ
Frequently Asked Questions
Hardware & capability
What is the maximum thickness of concrete the x-ray can penetrate?
The EVO 300D-900 x-ray source penetrates concrete up to 14 inches thick.
How does an x-ray source with a digital panel compare to a gamma source and film in terms of image quality and accuracy?
Digital x-ray with a DR panel produces higher-resolution, real-time images with significantly lower radiation exposure than gamma-source-plus-film workflows.
What are the dimensions and weight of the Digital Panel and x-ray Source?
Full spec sheets are provided with every demo. Contact us for current dimensions, weight, and transport specifications.
How does x-radiation compare to traditional gamma radiation?
X-ray sources emit only when energized, allowing strict ALARA control. Gamma sources continuously emit and require heavier shielding, transport permits, and exclusion zones.
On-site & commercial
Does Radii-x offer training options?
Yes. On-site and remote training programs are available for every new deployment.
How long does it take to setup and x-ray one location?
Typical setup at a single transpoint takes a few minutes; image acquisition itself is measured in seconds.
What is the total cost of a Digital X-Ray System?
System pricing depends on panel, source, and support package. We provide a detailed quote after a discovery call.
Can Radii-x demonstrate the system prior to purchase?
Yes. Request a demo and we'll schedule a live walkthrough on your jobsite or virtually with sample scans.
